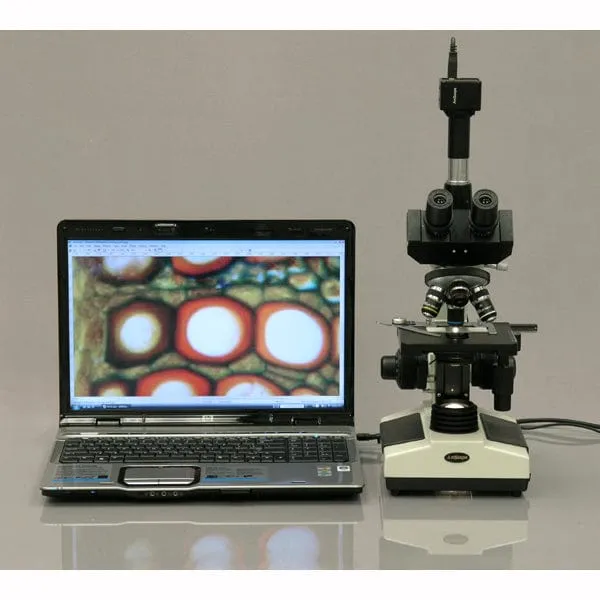

AmScope’s T390 compound microscope is a power tools for biological applications. This compound microscope features a 45 degree inclined, 360 degree rotating trinocular head with adjustable interpupillary distance, four objective lenses with four magnifications, 40X-100X-400X-1000X, a 3D double layer mechanical stage, precise coarse and fine focusing, and a brightfield halogen illumination system. The T390 microscope features a trinocular port for attaching a camera without using one of the eye-tubes. AmScope’s T390 compound microscope is ideal for studying cellular specimens on glass slides. The durable enamel finished metal is stain and corrosion resistant. The resolution in the field of view for bacteria and parasites is crystal clear and will satisfy the demands of any profession or curriculum.
This package includes a 1080p digital camera with built-in recording, and HDMI output for live-viewing. The camera's compact, all-metal design make it sturdy yet unobtrusive. Video can be viewed live on an HDMI monitor or television at a smooth 60fps, and recorded onto MicroSD (not included) at 30fps.
Features:
Achromatic optical system with precise optical glass elements
Trinocular sliding head with adjustable interpupillary distance
3D double layer mechanical stage with stain resistant finish
Coaxial coarse and fine focusing with CA knob tension control
Rack and pinion Abbe condenser with iris diaphragm and filter ring holder
Adjustable ocular diopter on both eye-tubes
High resolution images over a wide field of view
Low position coaxial stage X-Y travelling controls
Focusing knobs on both sides are lockable for observation transportation
Stage upward traveling locking mechanism protects objective lenses and specimens
Heavy-duty metal framework
Dimmable [halogen] illumination
Spare bulb, fuse, and immersion oil included
GS and CE approval
Manufactured under ISO 9001 Quality Control Standards
Excellent five (5) year warranty
Specifications:
Head: trinocular, 45 degree inclined, 360 degree swiveling
Nosepiece: revolving quadruple
Objective: Achromatic, DIN 4X, 10X, 40X(Spring), 100X(Spring, Oil)
Eyepiece: WF10X
Stage: 3D double layer, size 5.5x5.5 in (14x14 cm), X-Y stroke: 3x2 in (7.5x5 cm)
Focusing: coaxial coarse and fine
Condenser: Abbe, NA=1.25, with iris diaphragm
Illumination: halogen, 6V/20W
Power Supply: 100-240VAC 50/60Hz wide-band
Camera Specifications:
Camera Sensor: Sony IMX291
Sensor Type: CMOS
Sensor Resolution: 2MP (1920 x 1080)
Sensor Size: 1/2.8" class -- 6.06mm(w) x 4.42mm(h), 7.50mm(diag)
Pixel Size: 2.9µm
Dynamic Range: 128dB
Signal Noise Ratio: 30dB
Light Spectrum Response: 380nm to 650nm
HDMI Output: 1920x1080p60
Image Capture: 1920x1080
Image Format: JPEG
Video Capture: 1920x1080 @ 30fps, 1280x720 @ 60fps
Video Format: MOV
Storage: MicroSD Card (TF) max 128GB (not included)
Power: 5V (micro USB)
Packing List:
One Trinocular Microscope Body
Four Achromatic DIN Objectives, 4X, 10X, 40X(S), 100X(S, Oil)
One Pair of WF10X Eyepieces
One Mirror
One Bottle of Immersion Oil
Two Color Filters
One Dust Cover
One Power Cord
One Spare Bulb
One Spare Fuse
One HDMI camera
One HDMI cable
One power adapter for camera
One 0.5X C-mount reduction lens
Net Weight: 10 lbs (4.5 kg)
Package Weight 20 lbs (9.1 kg)
Dimension: 11 x7.5 x 15.75 in (28 x 19 x 40 cm)
